Athlone

Client

Private

Location

Dublin, Ireland

Project Type

HSE

Status

Completed

Scope

We Carried out a 3D Laser Scan to Deliver 3D BIM Model with the Required Level of detail.

Results

  • We scanned the site with Leica scanner.
  • Entire interior and exterior surveyed.
  • Detailed elevations, floor plans, sectional elevations were produced in AutoCad format.

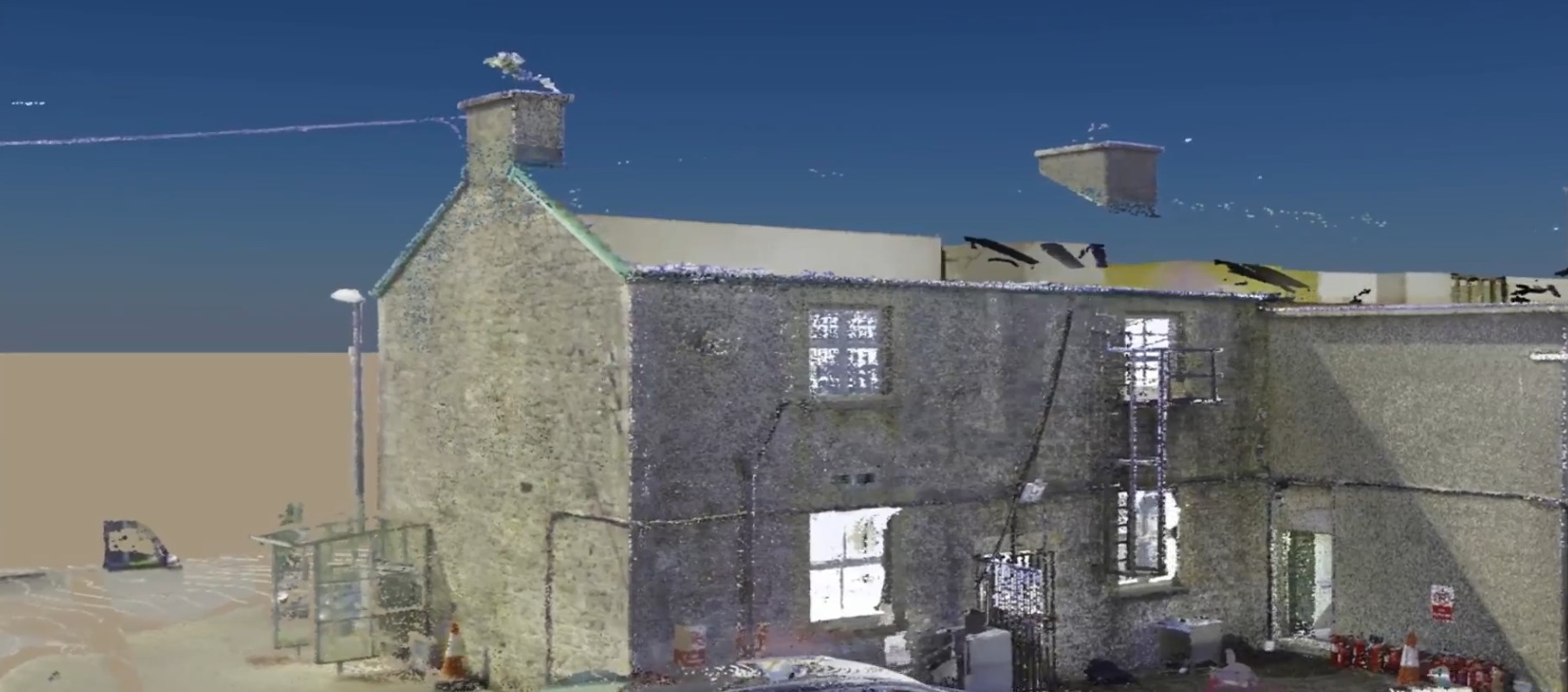

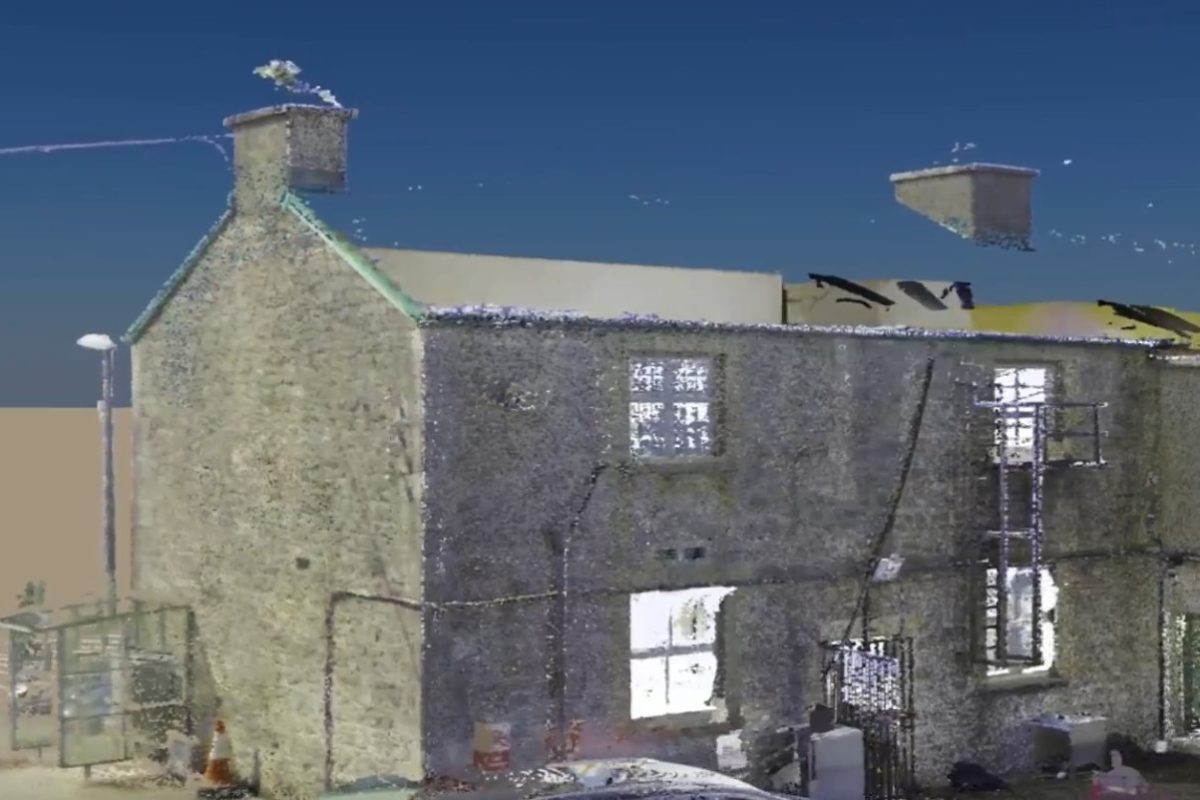

Athlone Scan 1

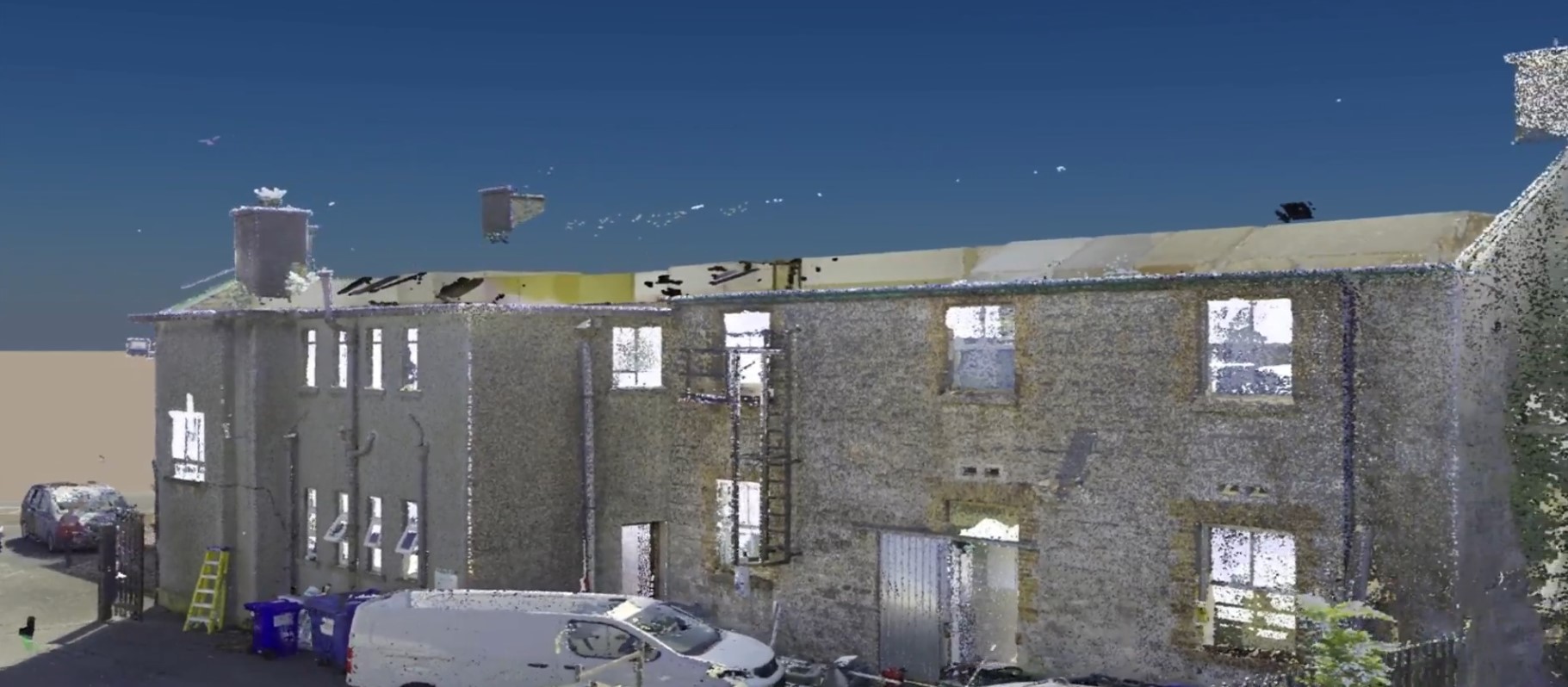

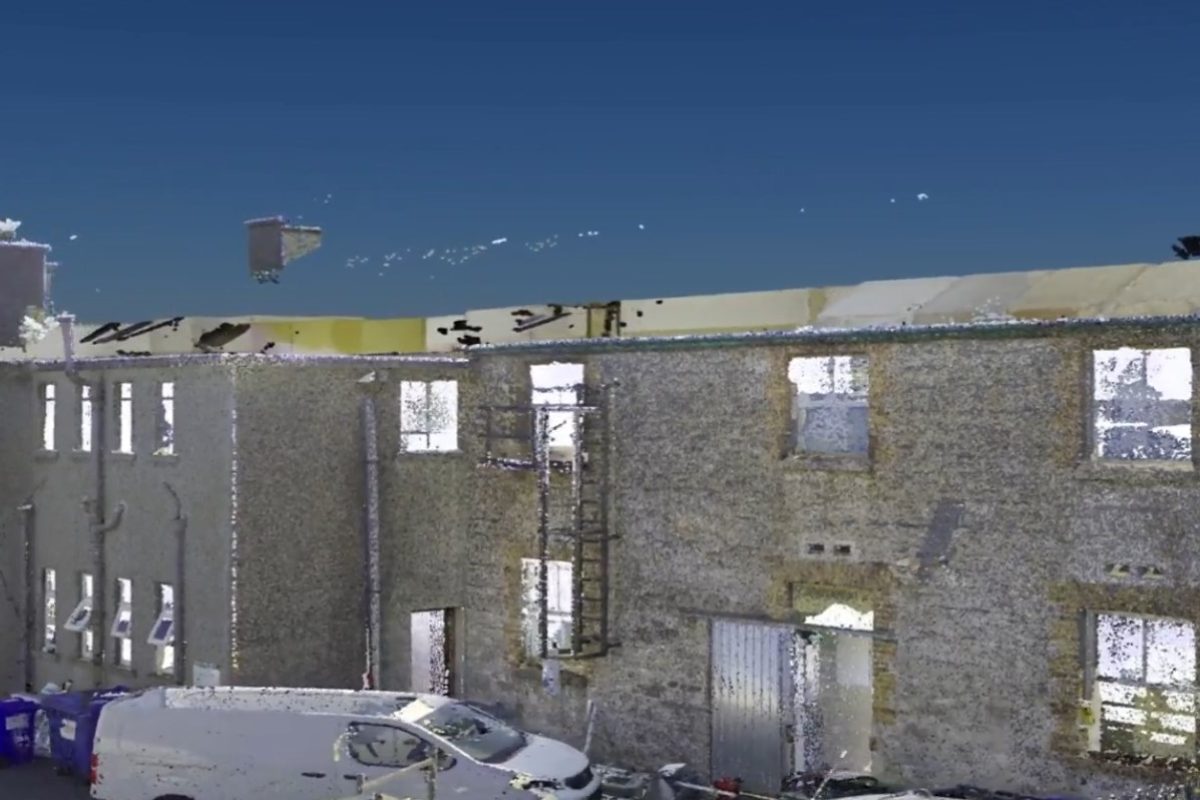

Athlone Scan 2

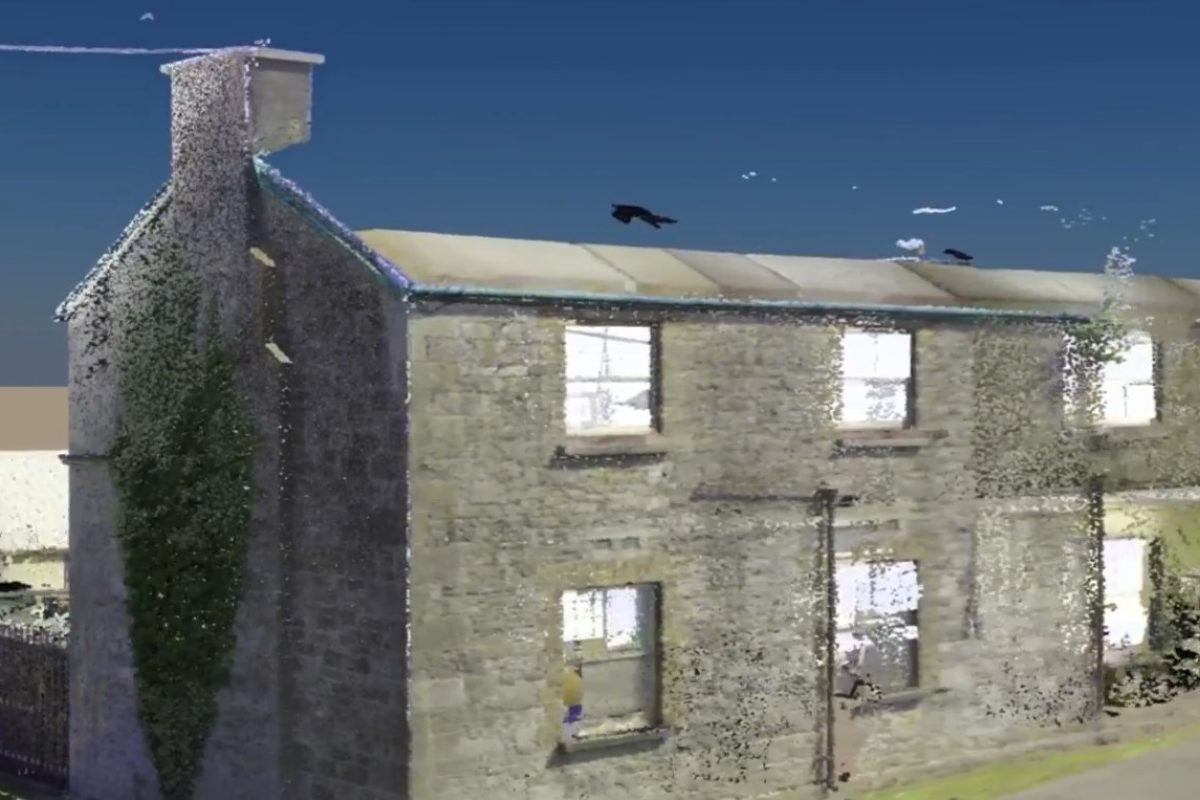

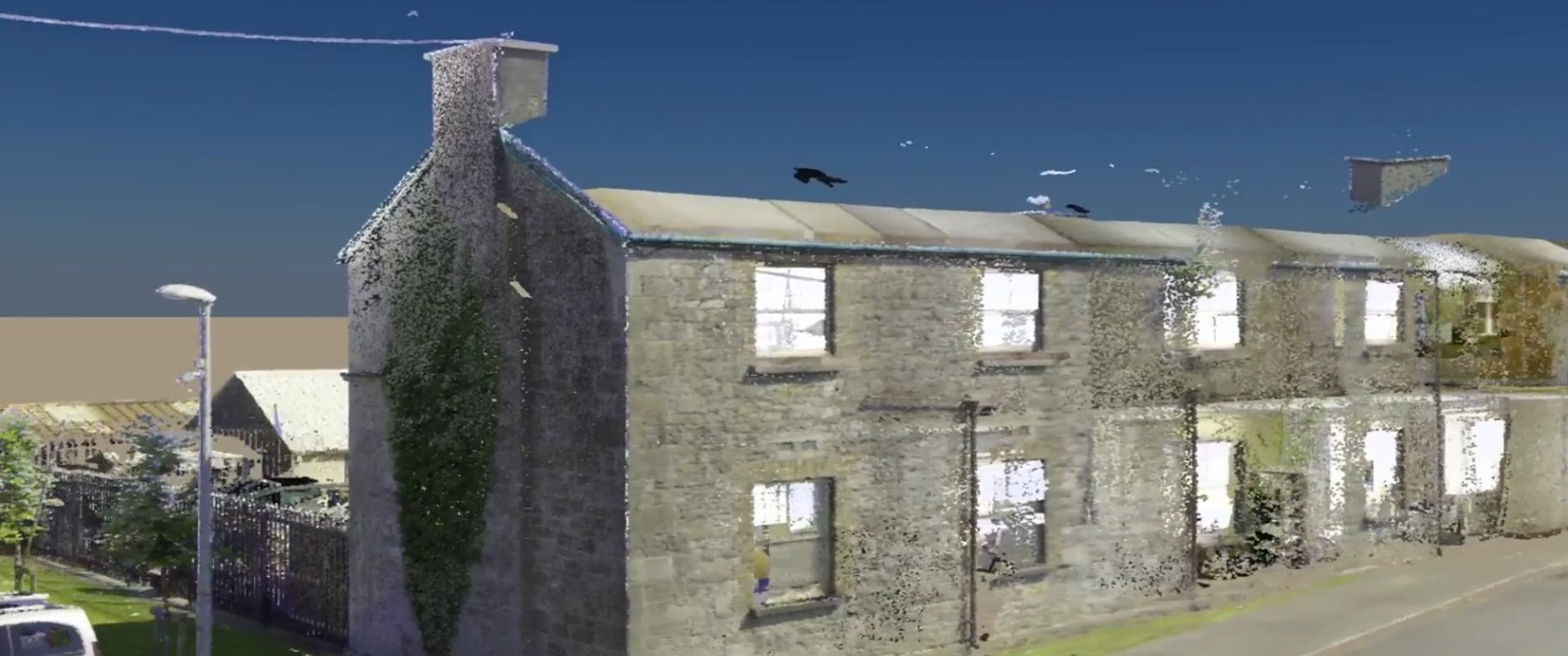

Athlone Scan 3

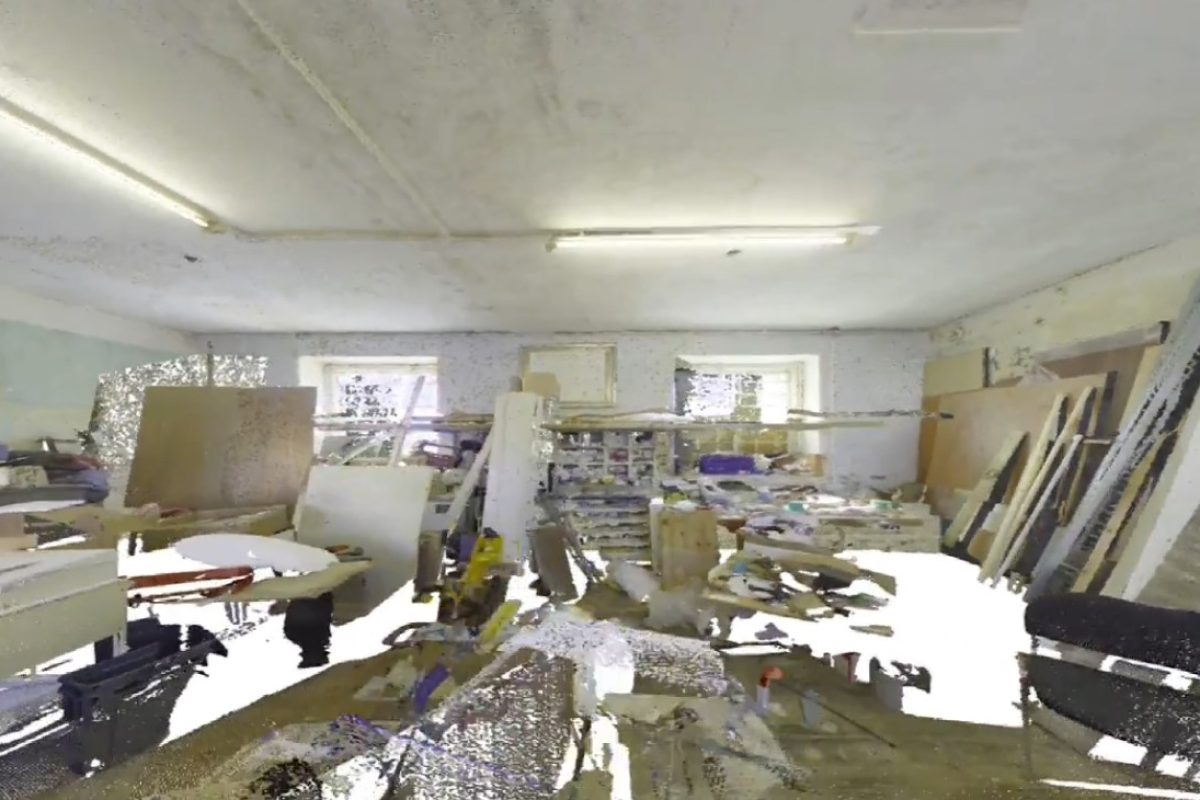

Athlone Scan 4

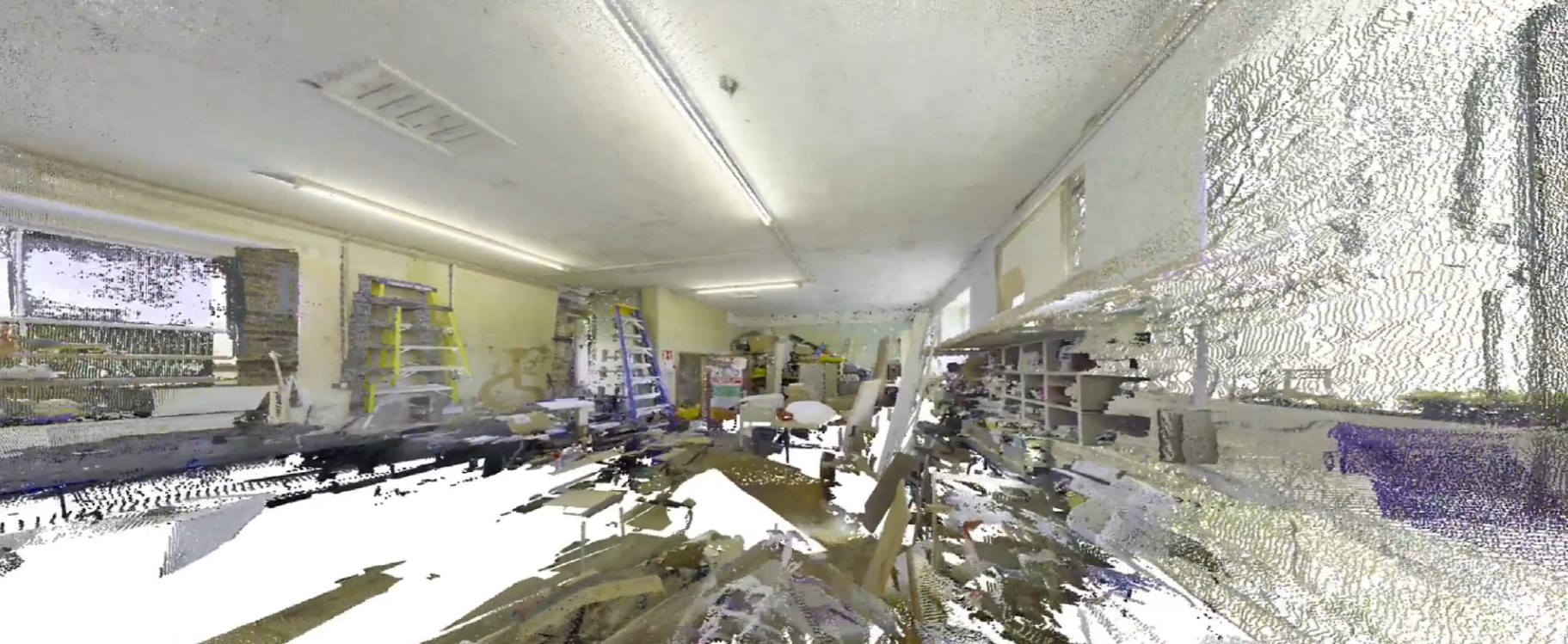

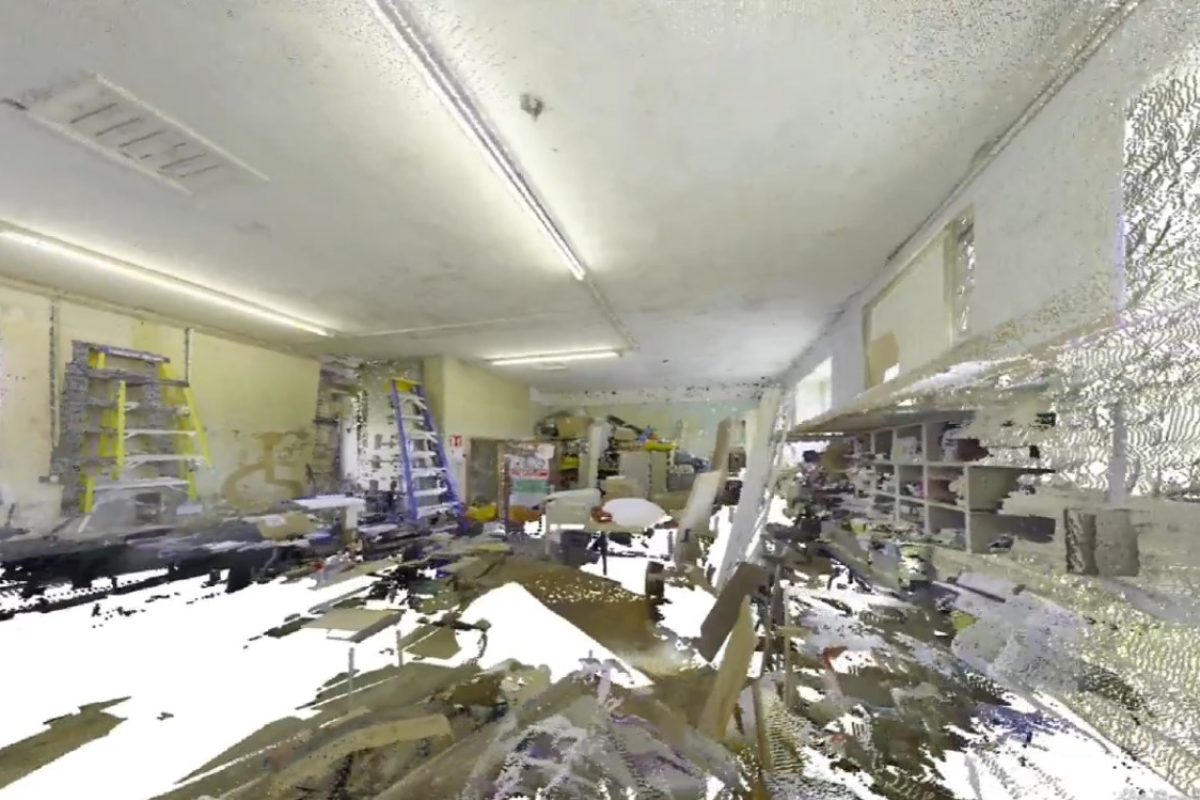

Athlone Scan 5

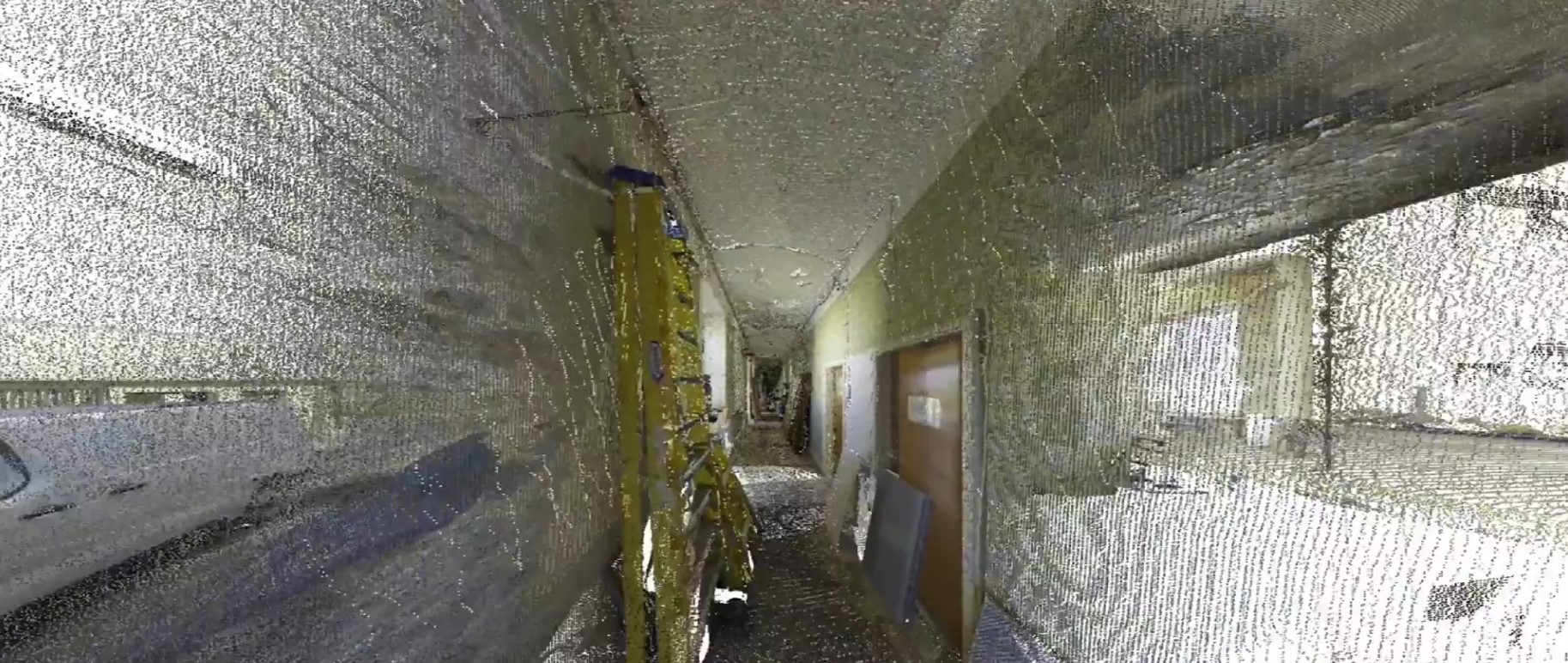

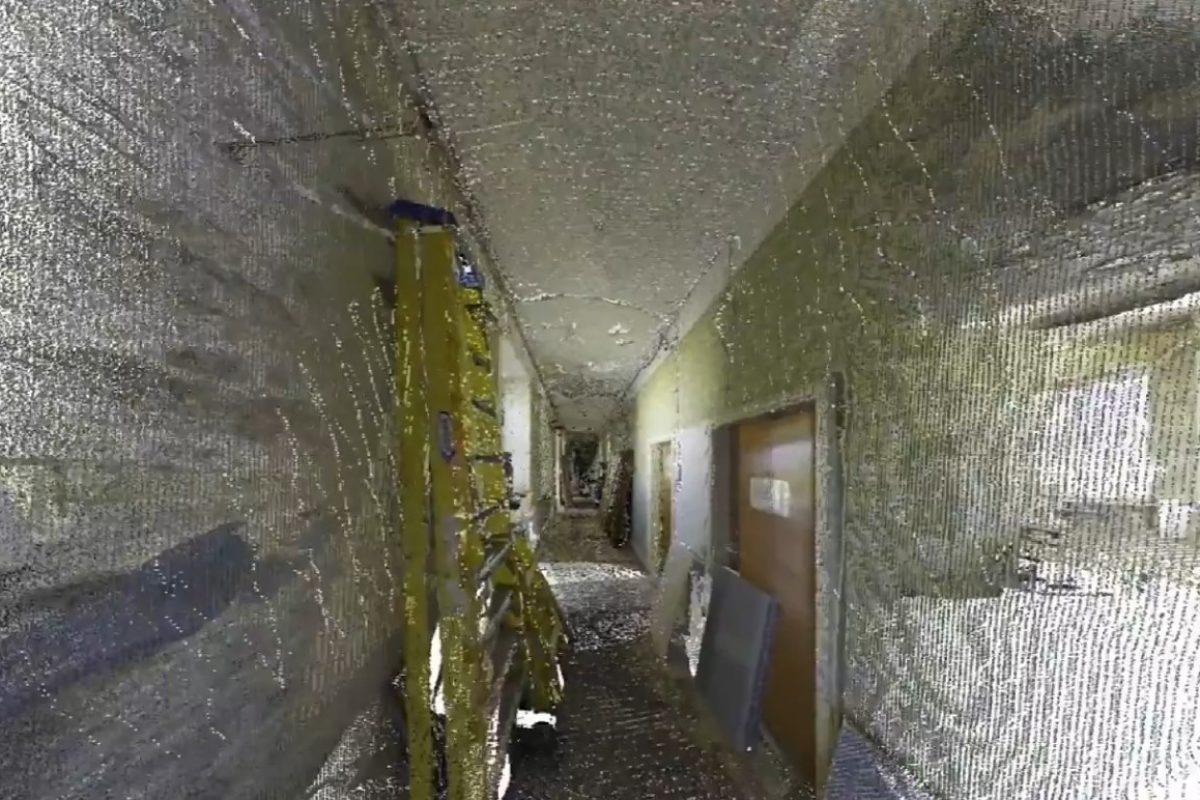

Athlone Scan 6



  • Consulted with the Architect to specify the special items of interest like walls textures, doors etc.

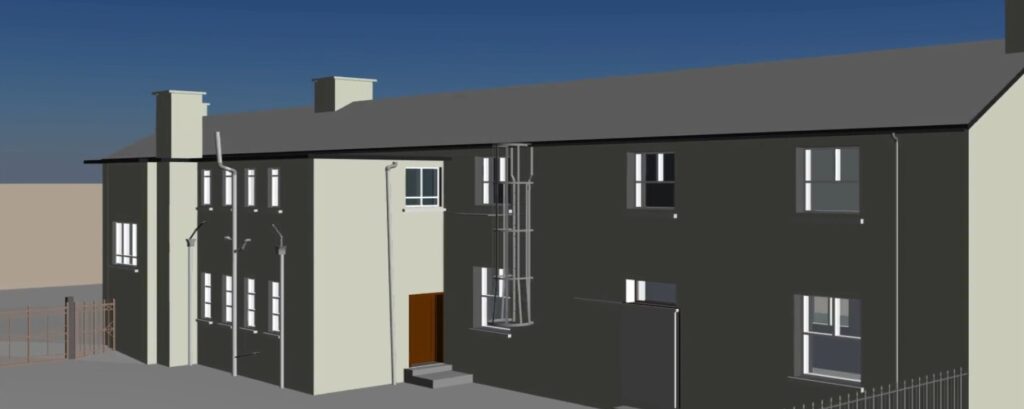

  • Deliverables were the Revit Model, 360 Imagery, Point Cloud and AutoCAD files.

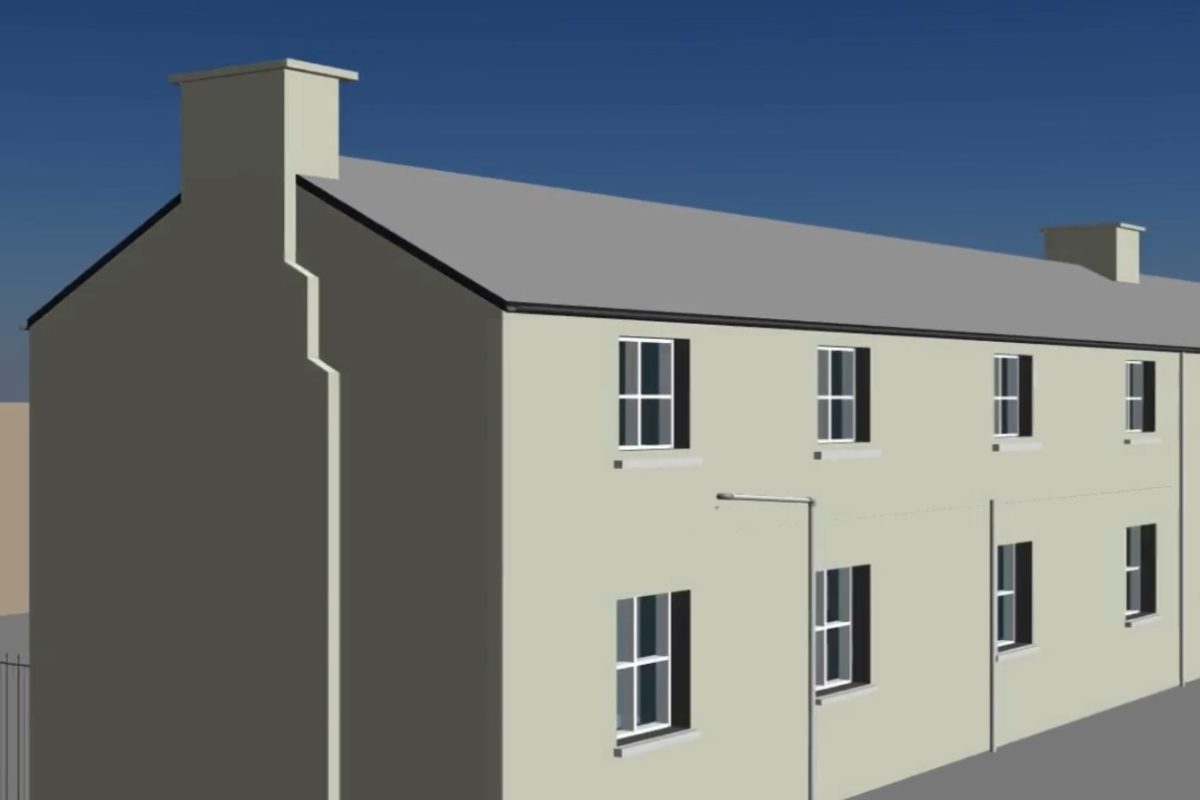

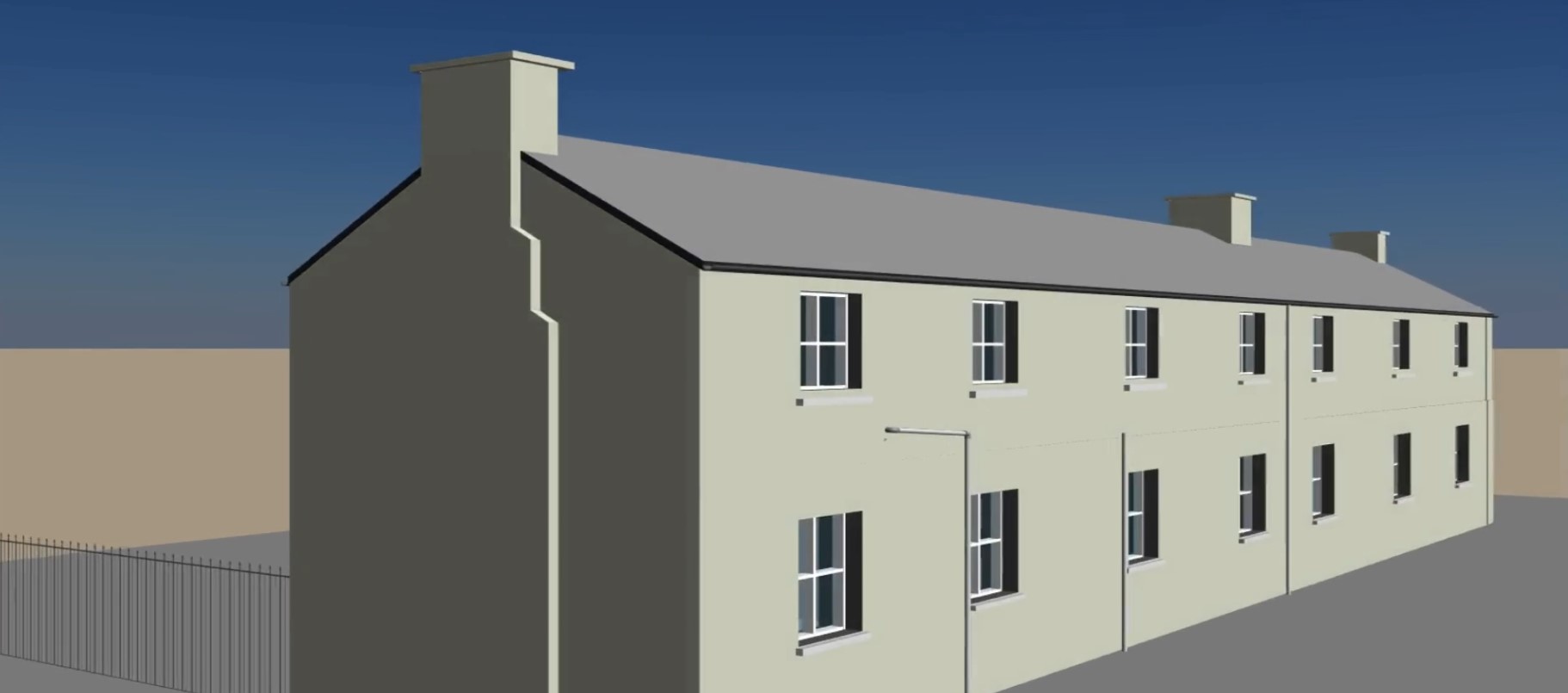

Athlone Model 3

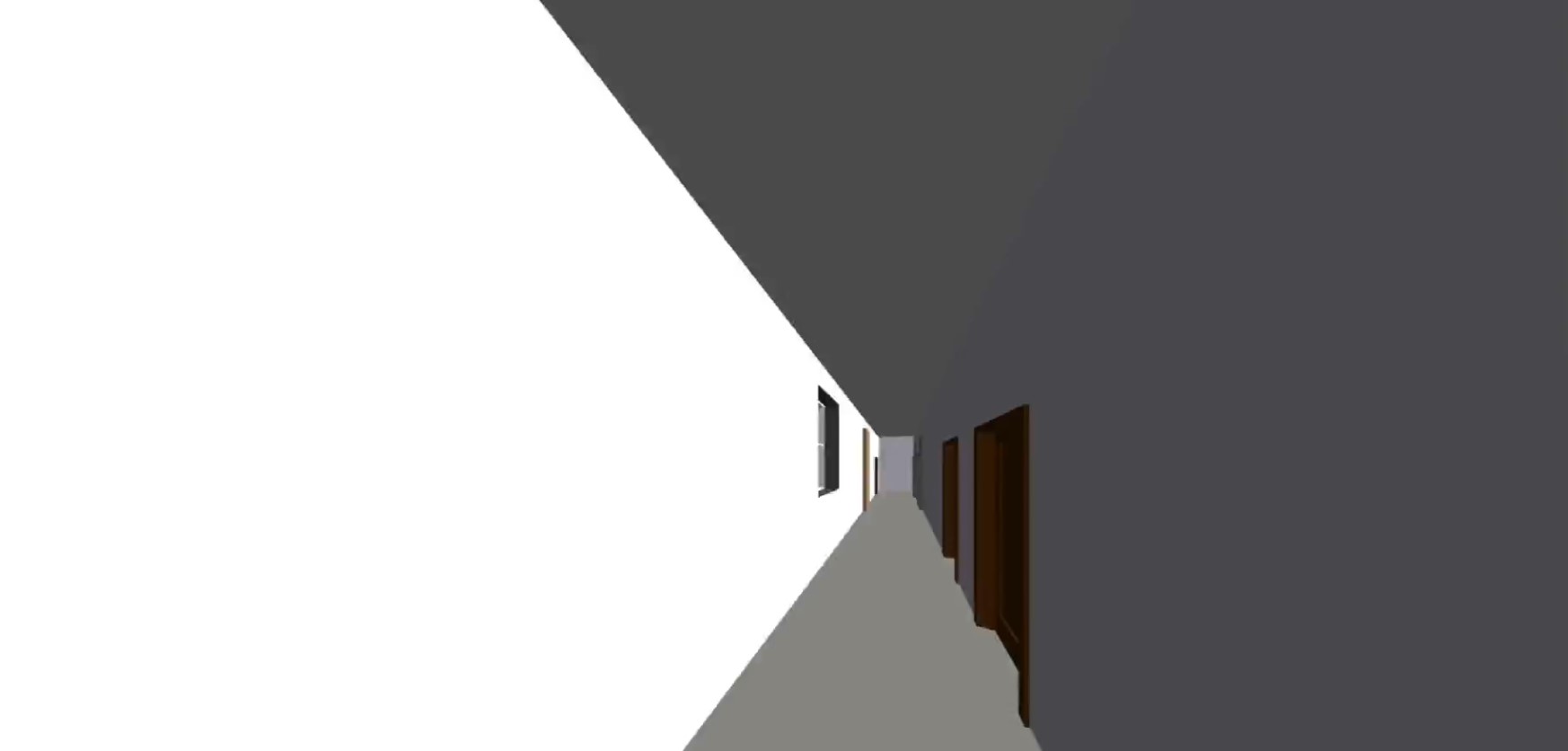

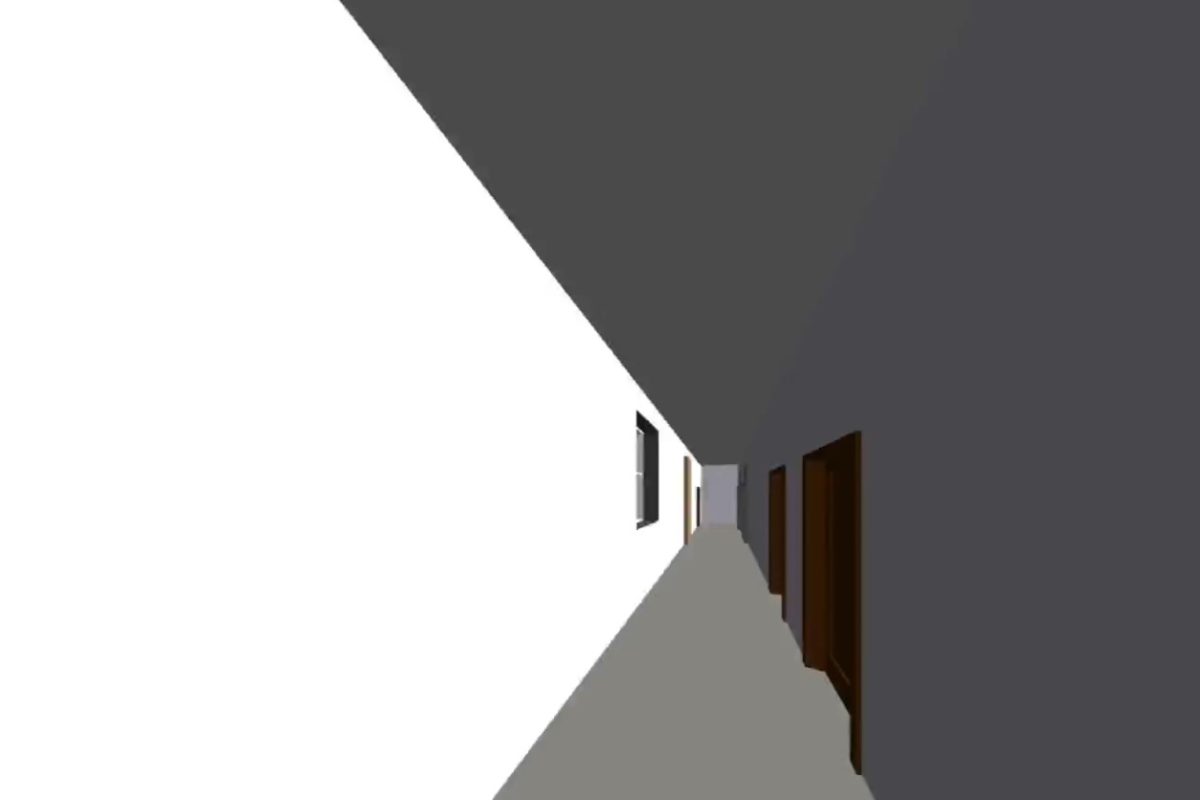

Athlone Model 4
