St Patrick

Client

Private

Location

Dublin, Ireland

Project Type

Commercial

Status

Completed

Scope

We Carried out a 3D Laser Scan of the Ambulance Center to Deliver 3D BIM Model with the Required Level of detail.

Results

  • We scanned the site with Leica scanner.
  • Entire interior and exterior surveyed.
  • Detailed elevations, floor plans, sectional elevations were produced in AutoCad format.

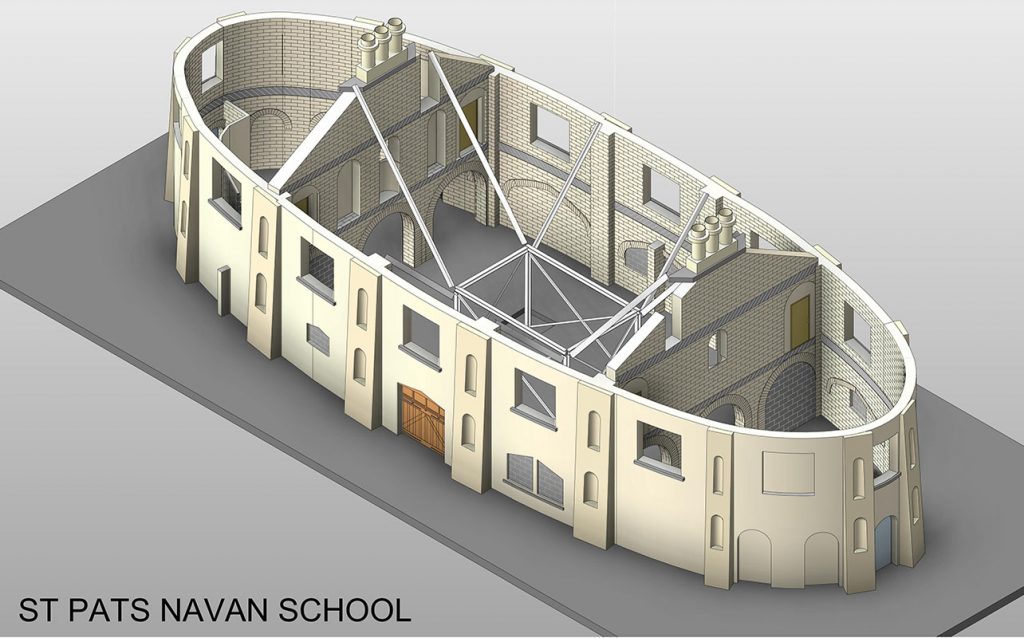

354435-1024x638

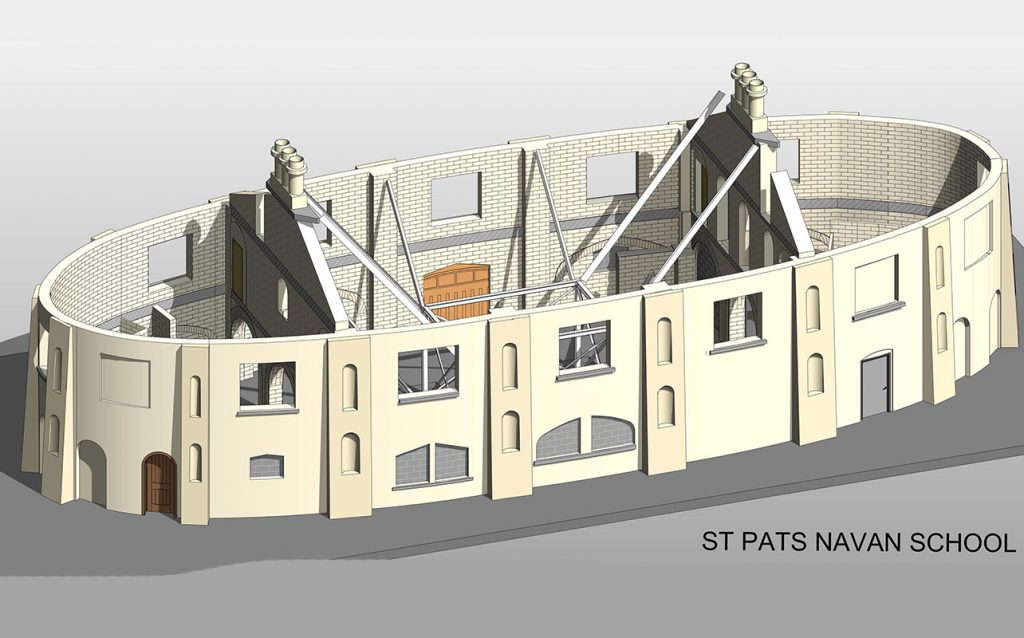

Untitled-14534534534-1024x638
  • Consulted with the Architect to specify the special items of interest like walls textures, doors etc.

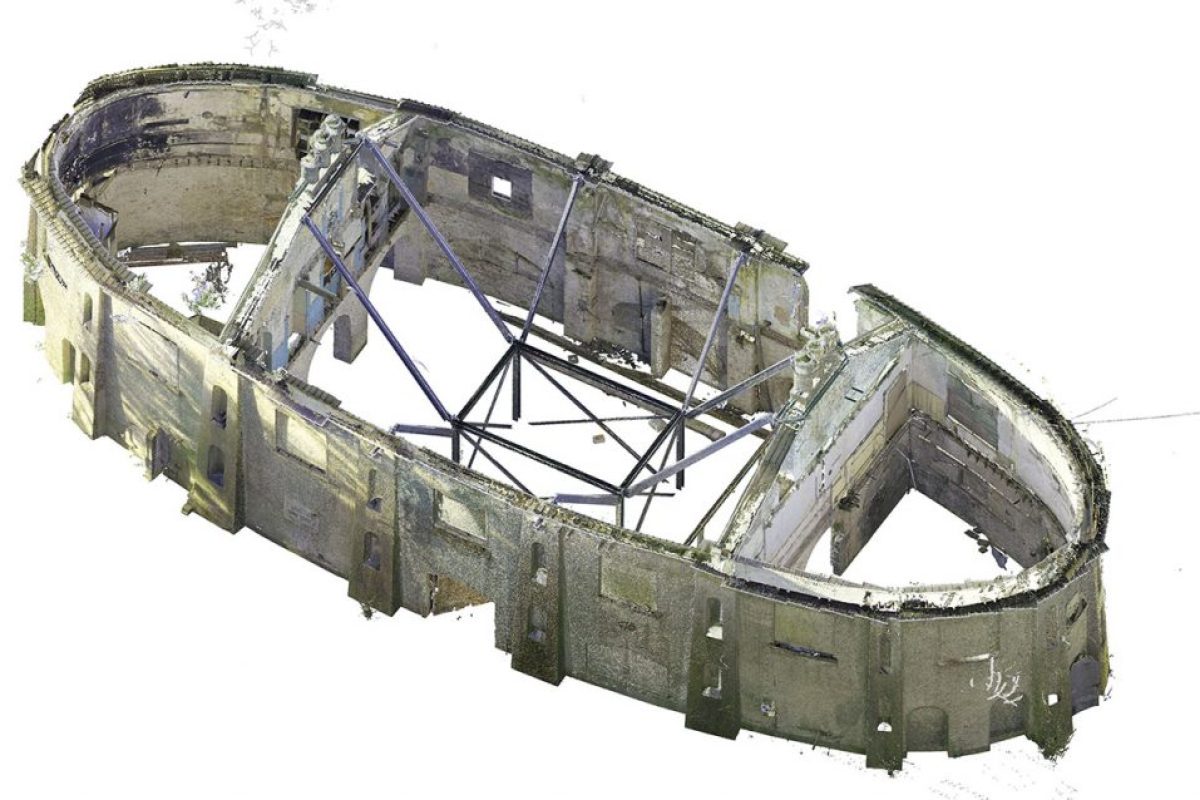

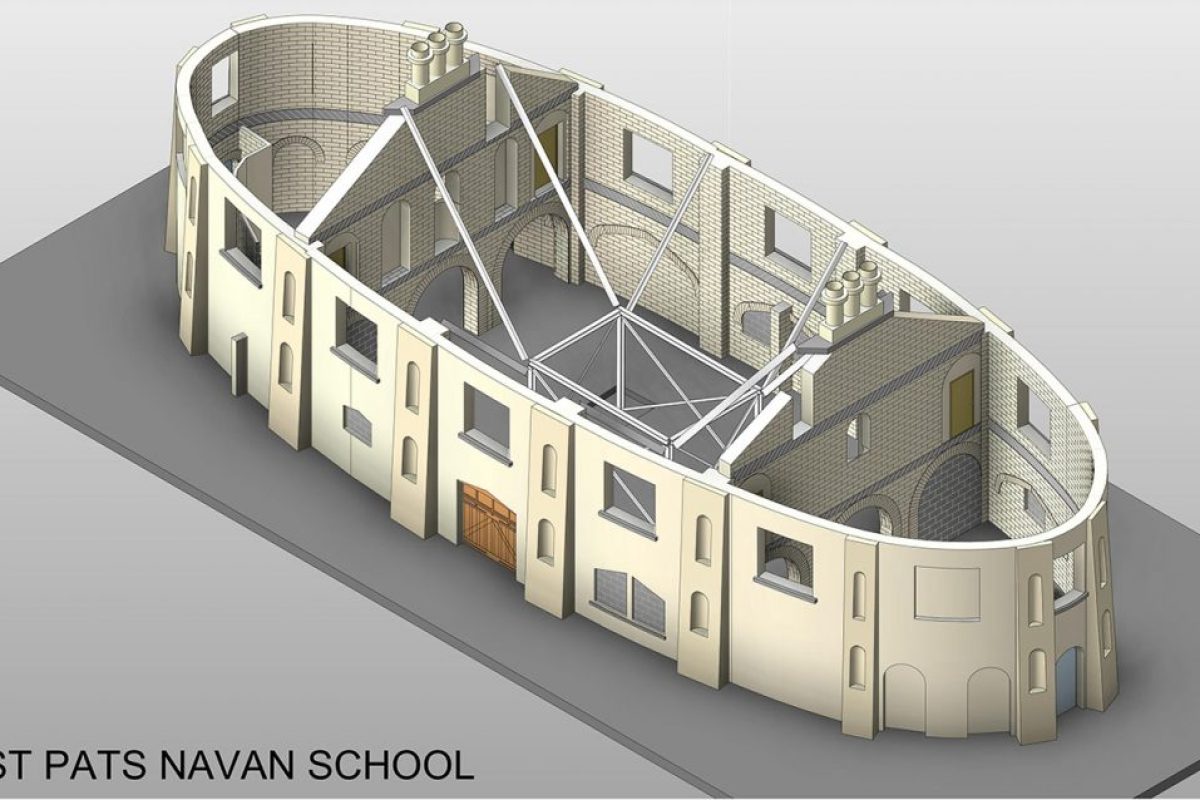

  • Deliverables were the Revit Model, 360 Imagery, Point Cloud and AutoCAD files.

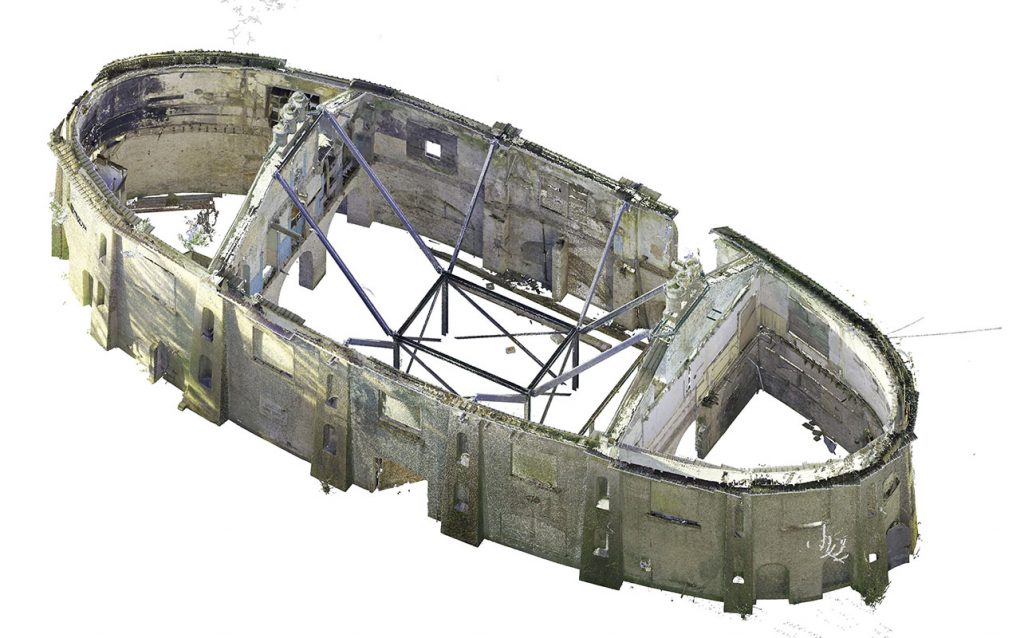

31312321321-1024x638

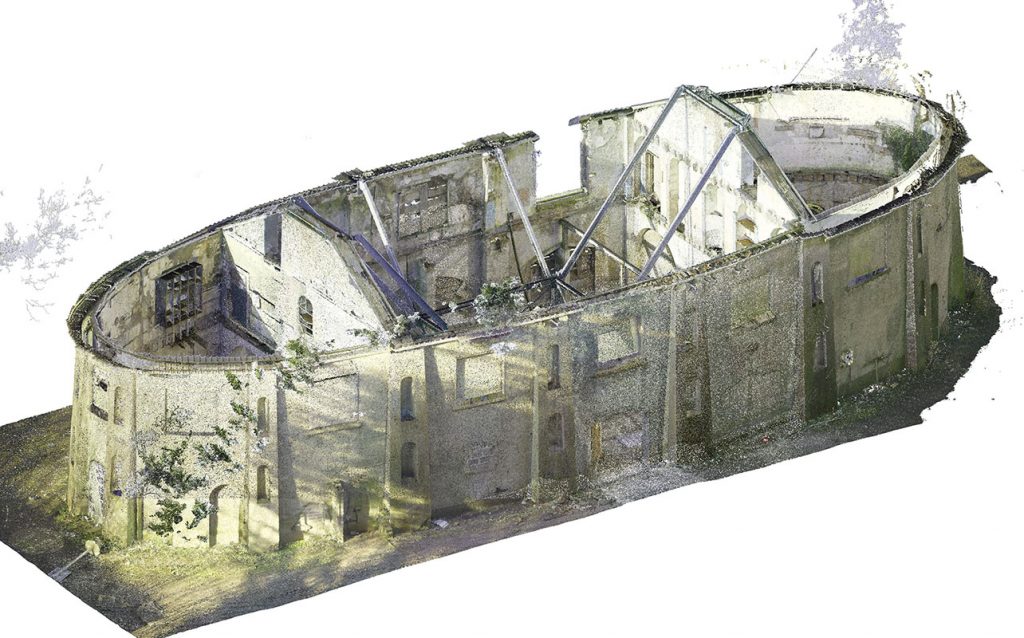

54374355-1024x638
